Description
Article number 150.032.094
Basic specifications

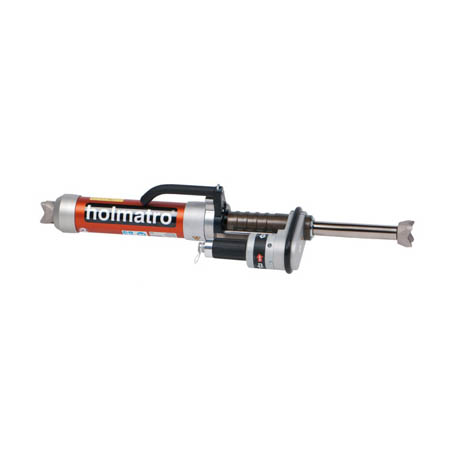

· Model XR 4360 C
· Equipped with (connector type) CORE
Max. working pressure: | 720 / 72 (bar/Mpa), 10443 psi |
Max. spreading force: | 100 / 10.2 (kN/t), 22481 lbf |
Total spreading stroke: | 650 mm, 25.6 in |
Mechanical stroke: | 300 mm, 11.8 in |
Hydraulic stroke: | 350 mm, 13.8 in |
Retracted length: | 625 mm, 24.6 in |
Extended length: | 1275 mm, 50.2 in |
Spreading force over full stroke: | 100 / 10.2 (kN/t), 22481 lbf |
Number of plungers: | 1 |
Weight, ready for use: | 13.6 kg, 30 lb |
Dimensions (LxWxH): | 625 x 209 x 168 mm, 24.6 x 8.2 x 6.6 in |
Norms: | EN 13204: R100/650-13.6 & TR100/300-100/350-13.6, NFPA 1936: Yes |
