Article number: 150.012.276
Basic specifications:

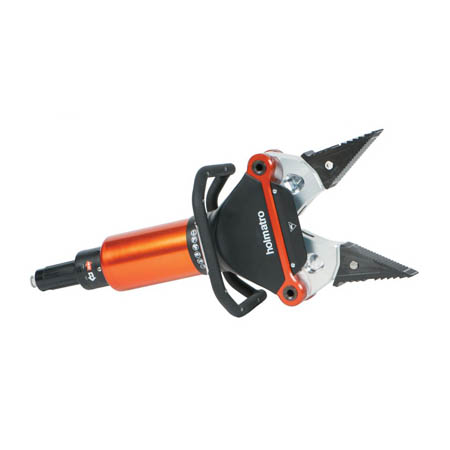

· Model SP 5280
· Equipped with (connector type) CORE
| Max. working pressure: | 720 / 72 (bar/Mpa), 10443 psi |
| Spreading distance: | 662 mm, 26.1 in |
| Max. spreading force: | 463 / 47.2 (kN/t), 104087 lbf |
| Min. spreading force (EN 13204): | 83 / 8.5 (kN/t), 18659 lbf |
| Max. squeezing force: | 159 / 16.2 (kN/t), 35745 lbf |
| Max. pulling force: | 99 / 10.1 (kN/t) |
| Max. pulling force (NFPA 1936, HPF): | 99 / 10.1 (kN/t), 22256 lbf |
| Max. spreading force (NFPA 1936, HSF): | 142 / 14.5 (kN/t), 31923 lbf |
| Min. pulling force (NFPA 1936, LPF): | 53 / 5.4 (kN/t), 11915 lbf |
| Min. spreading force (NFPA 1936, LSF): | 74 / 7.5 (kN/t), 16636 lbf |
| Dimensions: | 822 x 321 x 220 mm, 32.4 x 12.6 x 8.7 in |
| Weight, ready for use: | 19.8 kg, 43.7 lb |
| Norms | EN 13204: CS83/662-19.8, NFPA 1936: Yes |
